PR200 Signature

Stereo Preamplifier

• 4mm aluminium brushed front panel with graved logo and “Wave”, 1,5mm steel chassis, aluminium knob and keys
• Audio stages with discrete components, MKP technology link capacitors
• PCB with double layer nickel/gold, thermal protection
• Toroidal Transformer of 340 VA
• ALPS motorised potentiometer
• Direct acces of inputs from the front panel or the remote control

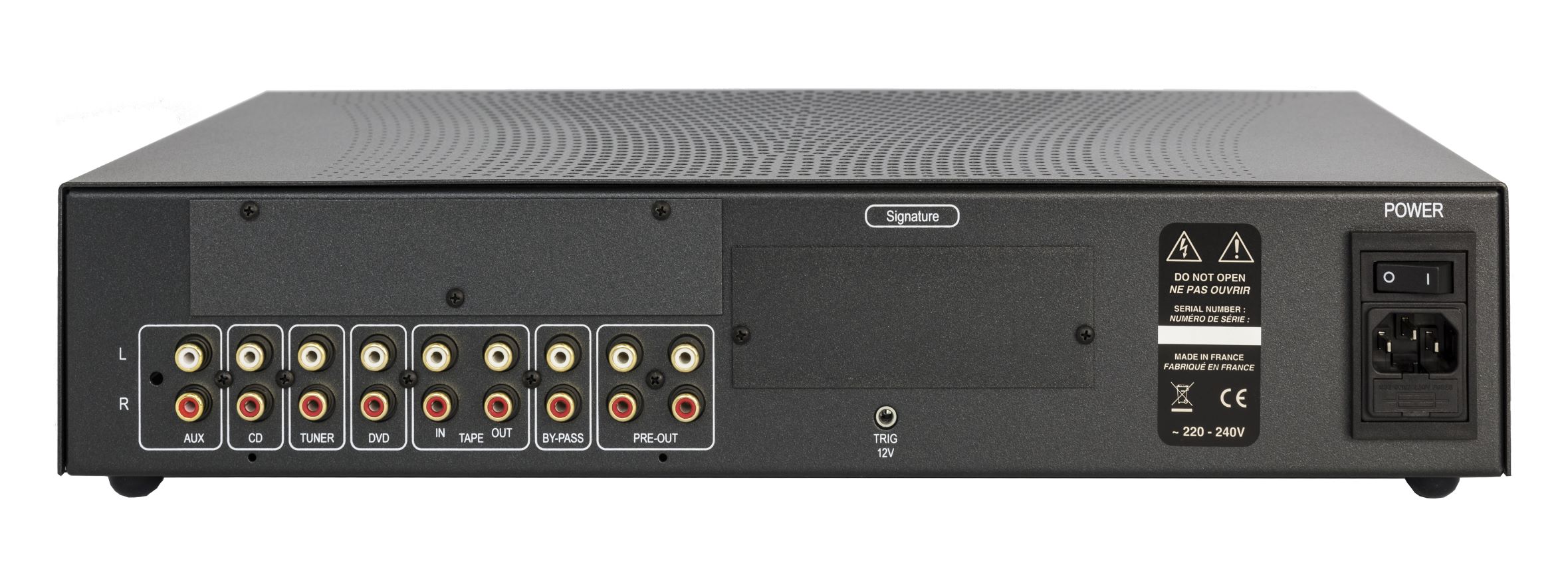

Connectings:

• 5 audio Inputs (RCA) :
• AUX ( or optional phono stage P50 or P100)
• CD
• TUNER
• TAPE (IN+OUT with monitoring loop)
• DVD
• 1 By-pass Input (using as power amplifier)
• 2 Pre-out Outputs (for bi-amp or to link to a subwoofer)
• 1 Headphones jack 6,35mm
• 1 trigger Output 12V

POSSIBLE OPTIONS:

This device can be equipped with 2 different options:

1 Phono Board on AUX Input (choice of 1) :

• P100 (set as MM or MC)
• P50 (MM)

1 Digital board (choice of 1) :

– Digital Board Signature (same as IN200SIG)

• 1 Bluetooth receiver
• 2 Coaxial Inputs (24Bits/192kHz)
• 2 Optical Inputs (24Bits/192kHz)
• 1 USB-B Input: PCM & DSD
  Audio Converter: AKM – AK4490
  PCM from 16 bits to 32bits up to 384 kHz on USB-B input (asynchronous).
  DSD : DSD64 & DSD128.
  USB Interface: XMOS with specific program designed for ATOLL.

– SPDIF board including 2 coaxial and 2 optical Inputs (24Bits/192kHz)
