MS120

STREAMER:

• Reading all audio files in the network (compatible DLNA and UPnP) connected on Wifi or wired RJ45.
• Displays the name, tags, album cover, resolution.
• “gapless” system (uninterrupted playback of consecutive audio tracks).
• Possibility to create Playlists.
• External control (with Qobuz, Audirvana…) with RTSP protocole.

MUSIC STREAMING SERVICES:

•  Direct access from the ATOLL app to streaming portals: Qobuz, Tidal, Deezer Hifi

STREAMING SPOTIFY CONNECT:

• Direct acces to Spotify with Spotify Connect

STREAMING TIDAL CONNECT :

• Direct access to Tidal with Tidal Connect

INTERNET RADIOS:

• Access to all internet radios with Airable system in high quality: choices of more than 100 000 stations, podcasts…
• Displays logos stations and further information: titles, artists, resolution…
• Possibility to add radios to a « favorite » menu.

AUDIO:

• Symmetrical outputs stages with no feedback and discrete components polarized in A class.
• Analog volume control (with commutated resistors) with possible By-Pass.
• Transformer specifically dedicated to audio stages.
• High Quality MKP link condensators.
• Burr-Brown PCM1796 converter.

END USERS:

•  5″ TFT led display (800*480).
• Serial remote control.
• Apple® and Androïd® free app.

Download the app:  “ATOLL Signature”

DETAILS ABOUT READABLE FILES :

Readable files: MQA, DSF, LPCM, FLAC, ALAC, AIFF, WMA, OGG, WAV, AAC, MP3.

Acceptable resolution: PCM up to 24bits/192kHz & DSD 64 & 128.

USB-A format: FAT32, NTFS, EXT2/3/4.

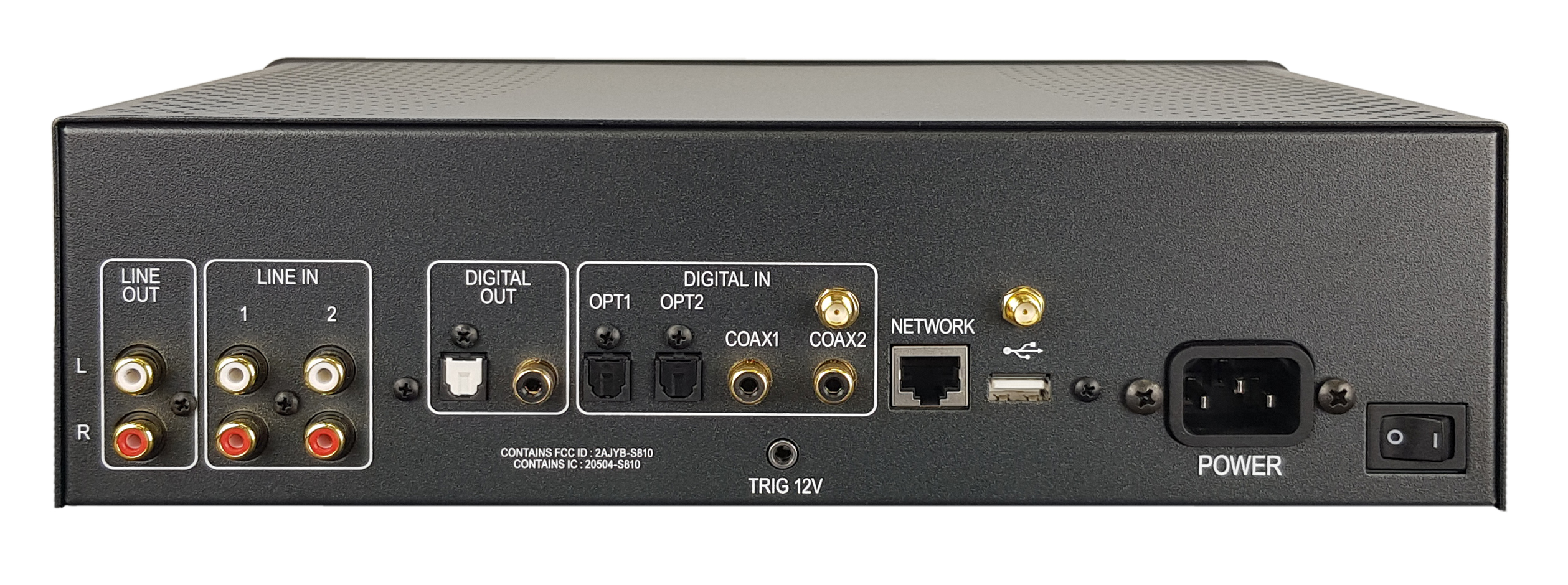

PRE-AMP/CONNECTING:

– Inputs:

               – 2 analog

               – 2 S/PDIF coaxial (PCM 24bits/192kHz)

               – 2 S/PDIF optical Toslink (PCM 24bits/192kHz)

– Outputs:

               – 1 Line-out

               – 1 S/PDIF coaxial

               – 1 S/PDIF optical Toslink

2 USB-A Inputs

1 Bluetooth® receiver
1 RJ45 network
1 Wifi antenna (802.11b/g/n)
1 trigger 12V output
1 headphones output front (3,5mm)
