Grandioso M1X

Monoblock Amplifier

Grandioso M1X

Redefinition of a power amplifier with the flagship model

 Redefinition of a power amplifier with the flagship model

Employing a newly developed super junction bipolar transistor the ESOTERIC SJ-BJT01, the Grandioso M1 has evolved into the X Edition.

An all-new Grandioso M1X, a power amplifier that draws music from dignified silence to effusive passion.

Throughout renewal of Grandioso M1 with the latest circuit technologies

• The world’s first^* bipolar transistor with high-current amplification factor and low on-resistance super junction, the ESOTERIC SJ-BJT01 for power amplifier element
• Toroidal-core transformers exclusive for both voltage amplification and current amplification stages
• Over-sized ESOTERIC’s custom-designed toroidal-core transformers with over 3,000VA of core-size for the current amplification stage
• New custom-deisgned capacitor with as high as 60,000uF capacity for the power supply section of the current amplification stage
• ES-LINK Analog input, a unique current transmission method, in addition to the conventional balanced and unbalanced inputs
• IDM-01 (Integrated Discrete-Amplifier Module) designed for the Grandioso C1X applied to the ES-LINK Analog circuit
• Audio signal control with FET elements that are not affected by mechanical contacts
• Copper foil for conductive patterns on power supply and amplifier printed circuit boards
• Balanced-design buffer amplifier circuit on input stage

Construction without compromise

• Hybrid structure with main and bottom chassis with different rigidity
• Tri power transformer configuration equipped with an R-core exclusive for control system

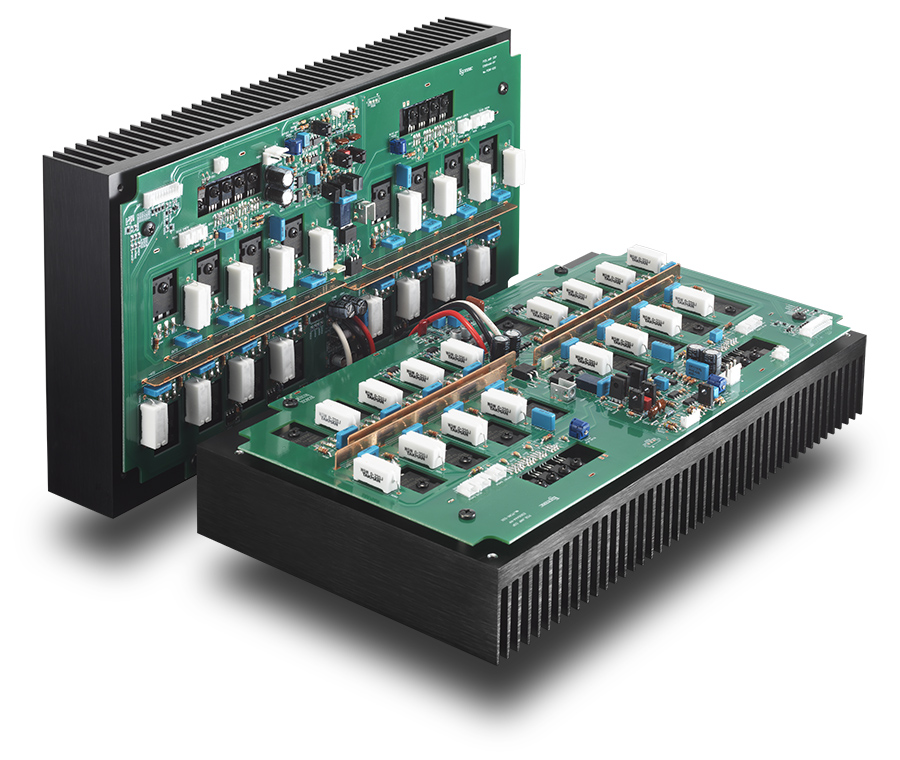

• ESOTERIC’s custom-designed un-even length heatsink fins
• Semi-floating design top panel that maximizes openness of sound
• ESOTERIC’s patent-registered unique pin-point feet

The completion of the X Edition

• High quailty analog audio transmission with the Grandioso C1X via ES-LINK Analog
• Trigger function allows the Grandioso C1X to turn on and off the M1X in sequence


Key Specifications

• Maximum output: 300 Watt into 8 Ohms / 600 Watt into 4 Ohms / 1,200 Watt into 2 Ohms
• Inputs: ES-LINK Analog × 1, RCA × 1, XLR × 1
• Speaker Output: Speaker Terminals × 1ch
• Trigger: IN × 1, THRU × 1 (Power On/Off controllable from the Gandioso C1X)
• Overall Dimensions: 491 × 221.5 × 535mm (W×H×D, including protrusion)
• Weight: 63kg
